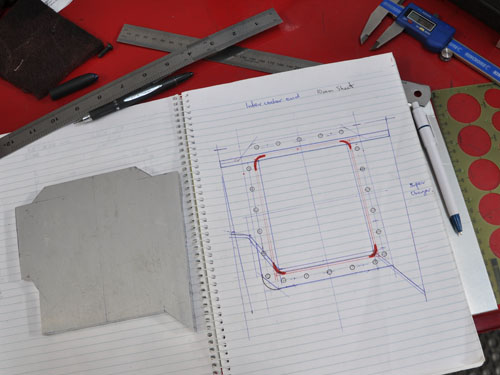

Designing plenum flanges

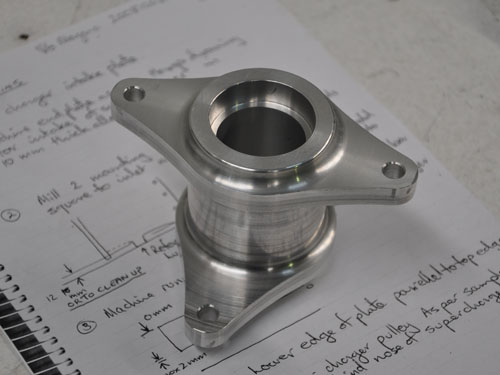

Conceive, design, create. Bearing mount for 2-stage belt drive

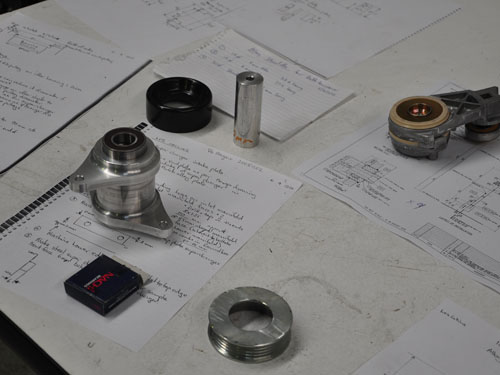

Components coming together

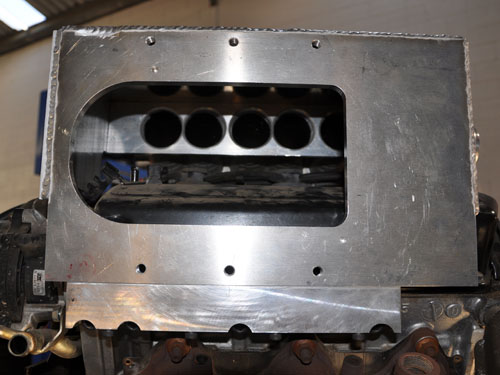

Plenum fitup to intake manifold

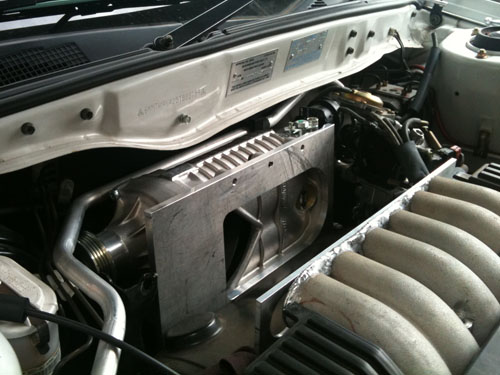

Plenum flange fitup to supercharger

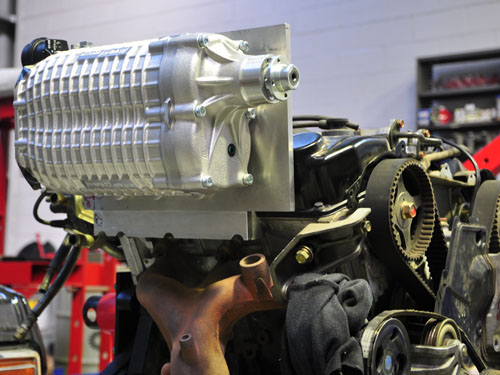

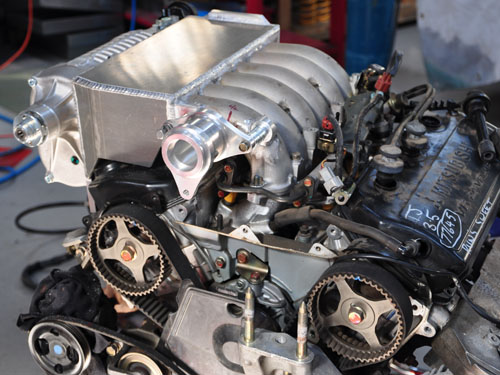

Supercharger mounted to dummy engine

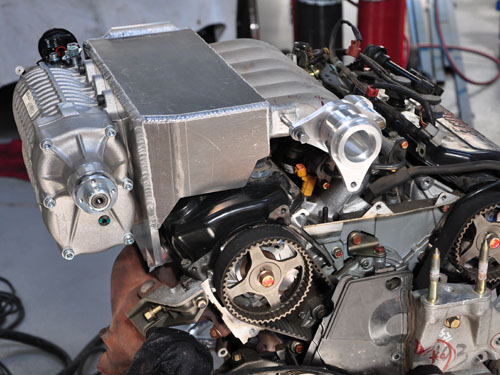

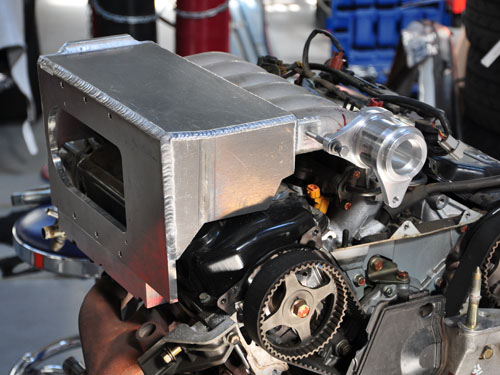

Plenum mounted to dummy engine
Work on drive system progresses
Looking good!

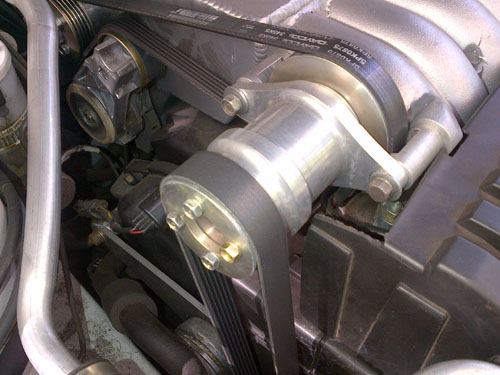

Belts in place and tensioned

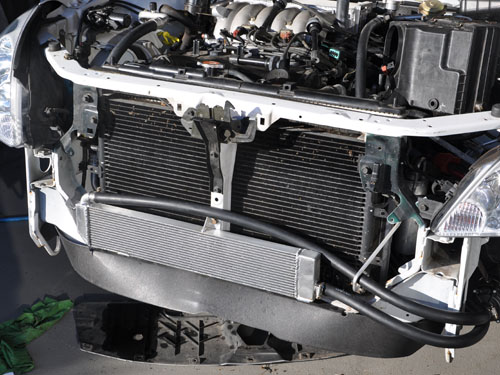

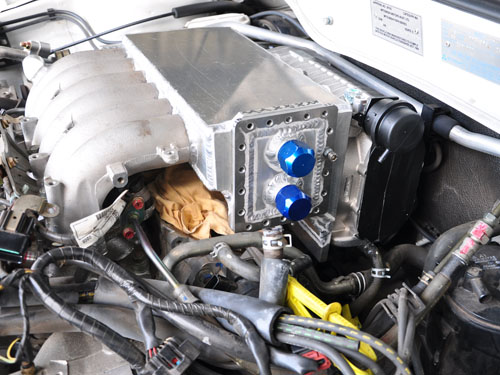

Air/water intercooler finished and mounted
Ready to connect water – intercooler to plenum

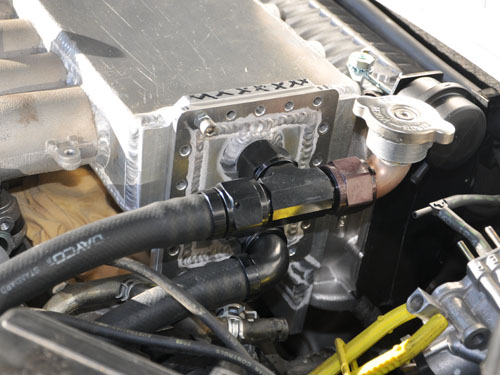

Fitted up complete with pressure cap

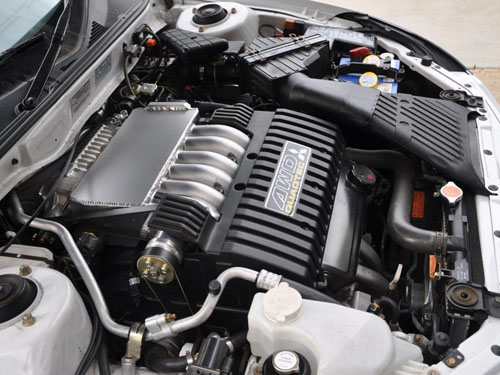

Complete and looking great
What to do when you have a car that's exactly the right vehicle for your needs, but it just won't get up and go?
Les' solution for a V6 Magna wagon owner was to supercharge it! On inspection he reckoned he could just about fit a Harrop blower between engine and firewall. The owner got excited and the project was launched.
Various components including a plenum, an intercooler, mounting brackets and drive components needed to be designed and created. The pictures at left show some of the work as it progressed.
The result was a huge success, the client more than happy with the transformation of his beloved Magna.
